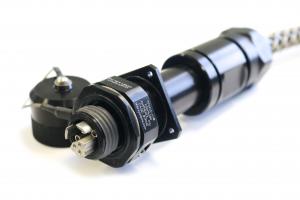

TFOCA-III^® Fiber Optic Connectors

The TFOCA-III^® series of 6 & 24-channel fiber optic connectors are ideal for environmentally harsh conditions.

The TFOCA-III^® design utilizes the latest technology in fiber optic connectivity by incorporating industry standard physical contact ceramic ferrules and alignment sleeves.

• Hermaphroditic design for versatility – enables multiple TFOCA-III^® plug assemblies to be daisy-chained
• Removable end cap allows for easy field maintenance and cleaning
• 6 & 24-channel connector design is ideal for high-density harsh environment applications
• Superior cable retention strength is designed to meet 400 lb pull strength while protecting fibers from stress
• Zn-Ni plating provides substantial longevity to corrosive environments. Meets new mandate set by the Environmental Protection Agency for elimination of heavy metal plating
• Commercial ceramic ferrule technology enables TFOCA-III^® connector to provision multimode and single mode interconnect with a variety of polishes including SPC and UPC
• Solid core alignment sleeves are more robust than split alignment sleeves
• Hermaphroditic dust cap – plug and/or receptacle dust caps connect together to prevent dust and moisture penetration during deployable conditions
• Optional key positions – four key positions (1,2,3, universal) available, enabling segregation of mated plug/receptacles or plug/plug, through mechanical interface
• Field repairable using existing parts – additional connector components (other than termini) are not required to perform field repair
• Also available in stainless steel, which allows the connector to be used in a variety of applications
